Battery Leads:

OptiMate premium fused battery leads, made with durable components, are considered the ultimate in safe and easy connect ability to the battery. Power sport and motor vehicle OEMs / brands that use OptiMate battery leads include Aston Martin, Drag Specialties, Ducati, KTM / Husqvarna / GasGas, Honda, Moose Racing, Moose Utility Division, Pagani, Polaris Industries, Triumph, Wunderlich, …

Three different ringlet sizes are available to fit battery terminals with screw / bolt fasteners.

M6 (1/4”) Ringlets (found on O-21, O-31s), are ideal for motorcycle and powersport battery terminals. The battery lead delivered with some powersport specific chargers are also M6 (1/4”).

M6 / 1/4″ – M8 / 5/16” dual size ringlets (found on O-01, O-124, O-127) offer versatile fitting for both powersport and automotive batteries. M6 (1/4”) is the default size, but it can be easily adapted* the larger M8 (5/16”) size.

M8 (5/16″) / M10 (3/8″) dual size ringlets (found on O-11, O-128) fit larger automotive, marine, and industrial battery terminals. M8 (5/16”) is the default size, but it can be easily adapted* the larger M10 (3/8”) size.

* Dual size ring adaption to the larger size – remove the metal triangular spacer; twist and break off using a set of long nose pliers.

Battery Leads – Connector Types:

SAE connector (found on O-01, O-11, O-124, O-127, O-128) is the standard connector that is compatible with all OptiMate chargers. The O-01 & O-11 standard SAE connector also has mounting slits to secure the connector out of harm’s way when not in use.

Slim SAE connector (found on O-31s) is a more compact version of the standard SAE, measuring 16mm (21/32″) x 8mm (11/32″), perfect for tight spaces.

Battery lead – Protection when not in use: Every OptiMate battery lead has a silicon rubber sealing cap to protect the connector from ingress of dirt and water.

Premium protection:

Each battery lead is protected against accidental electrical short circuit or over current with a replaceable fuse (15A for O-01, O-11, O-124, O-127, O-128, O-21 / 7.5A for O-31s).

Cable with thick insulation rated for use down to -40°C / -40°F and certified for on-vehicle / equipment battery charging, is used in all OptiMate battery leads.

O-124, O-128 and O-127 –

The O-124, O-127 and O-128 smart battery leads include a dual function microprocessor and 4 LEDs that 1) monitor & display the battery’s state of charge during storage, and 2) confirms if voltage is within range when the battery is receiving charge. It warns if charge voltage is too high.

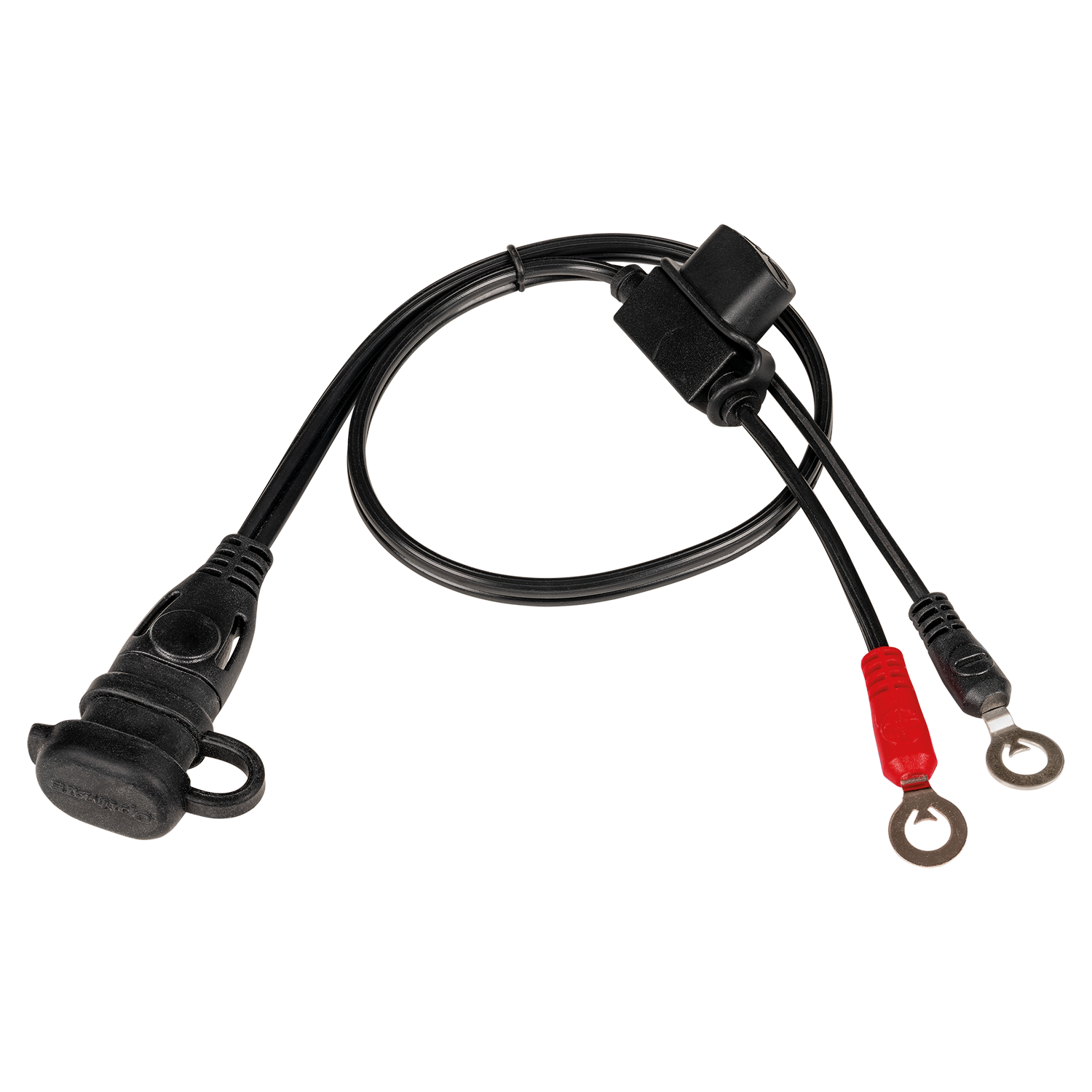

O-01 powersport battery lead		Ring: M6-8 (1/4”-5/16”) Cable: 0.82mm2 (18AWG) Fuse: 15A

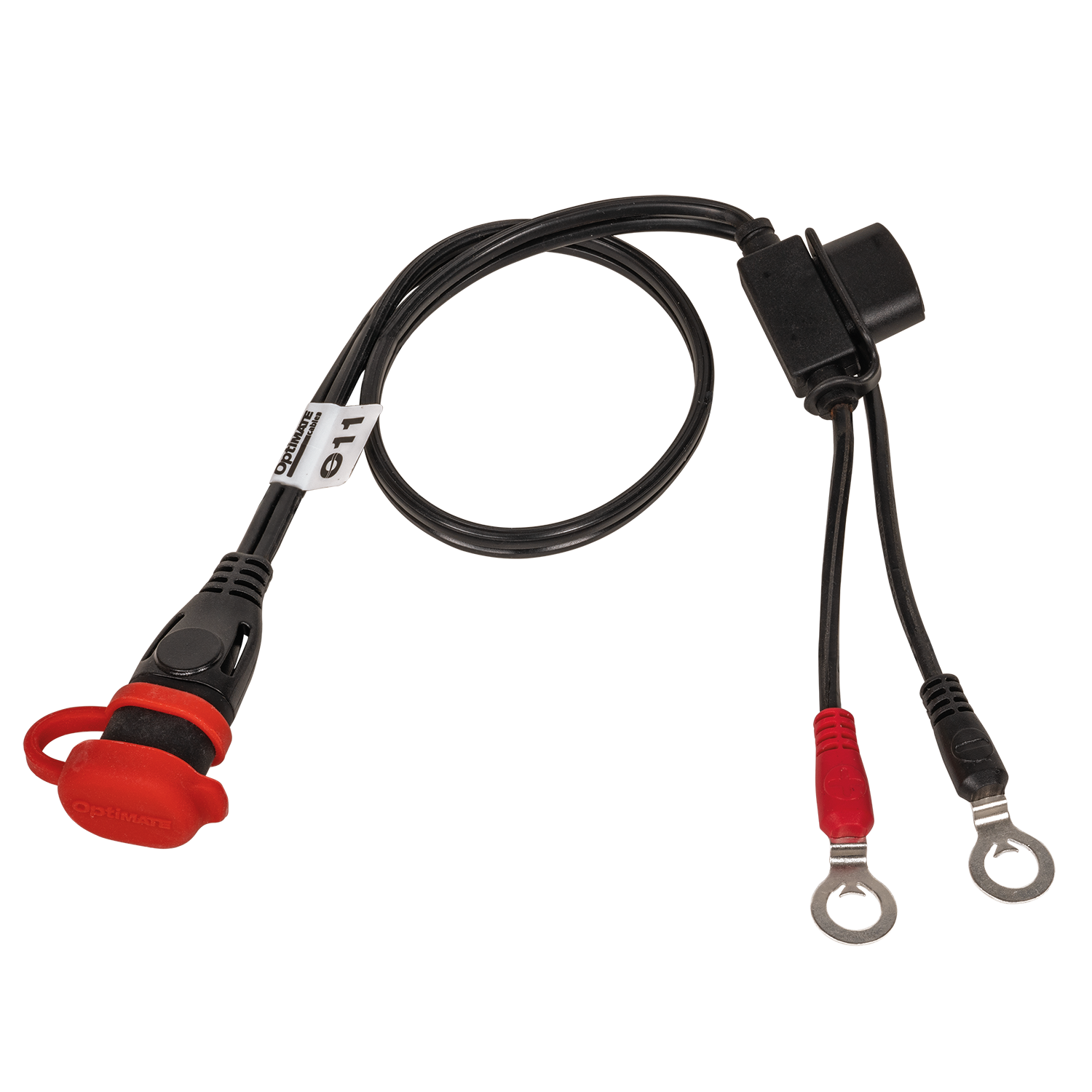

O-11 auto/marine battery lead		Ring: M8-10 (5/16”-3/8”) Cable: 1.31mm2 (16AWG) Fuse: 15A
O-21 powersport heated apparel / gear battery lead		Ring: M6 (1/4”) Cable: 1.31mm2 (16AWG) Fuse: 15A
O-31s auto/marine battery lead		Ring: M6 (1/4”) Cable: 0.82mm2 (18AWG) Fuse: 7.5A
O-124 battery lead w/ LED monitor		Ring: M6-8 (1/4”-5/16”) Cable: 1.31mm2 (16AWG) Fuse: 15A

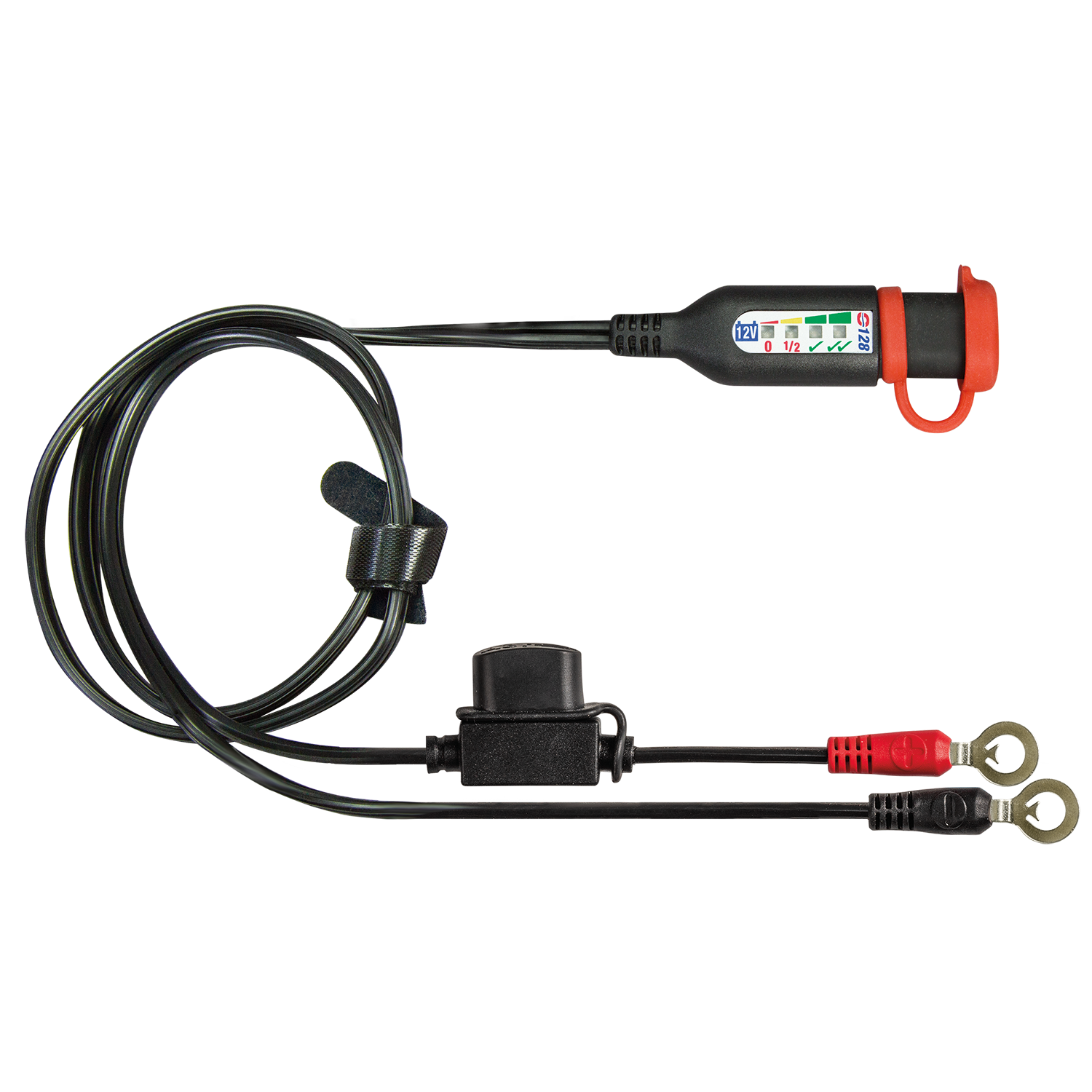

O-128 battery lead w/ LED monitor		Ring: M8-10 (5/16”-3/8”) Cable: 1.31mm2 (16AWG) Fuse: 15A

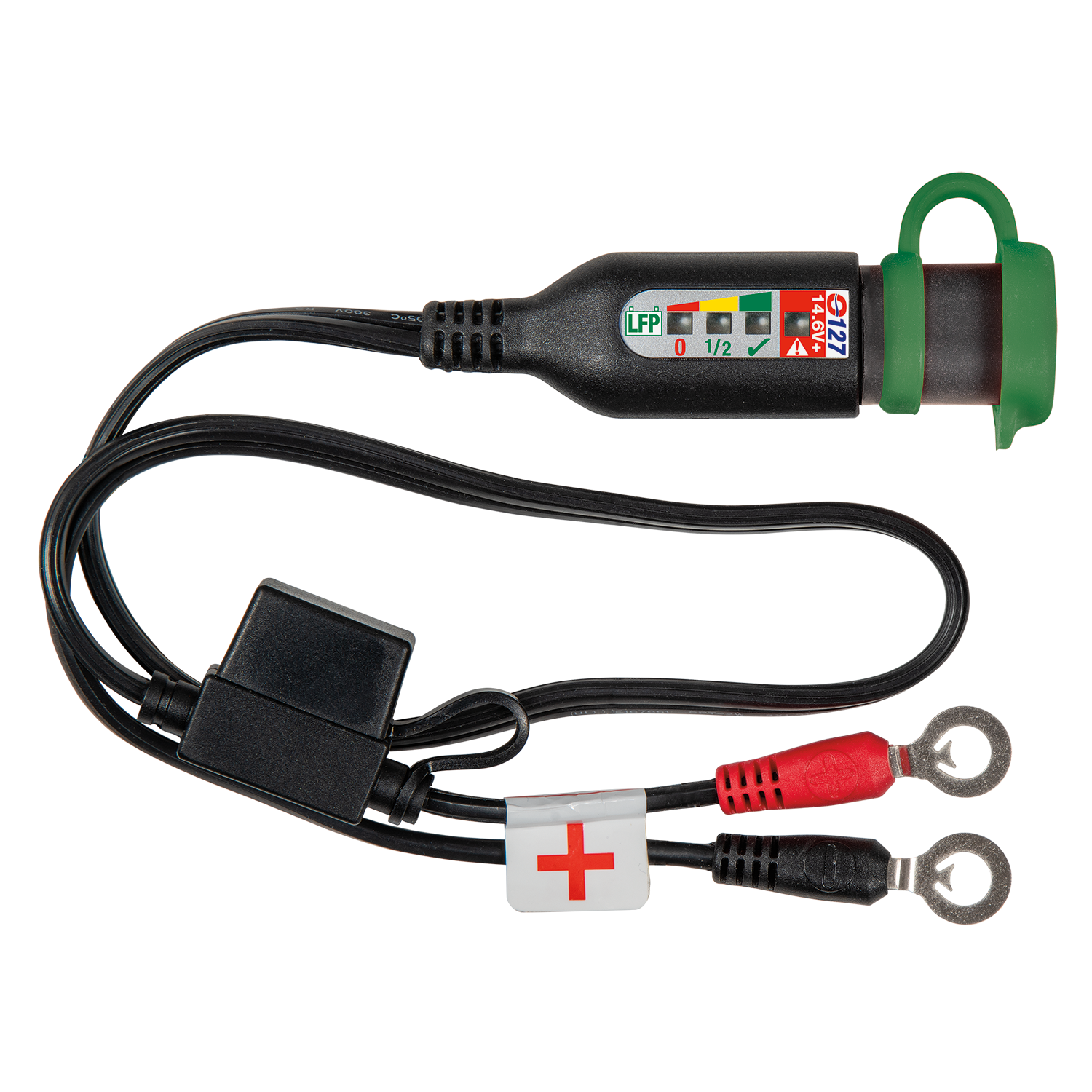

O-127 battery lead w/ LED monitor		Ring: M6-8 (1/4”-5/16”) Cable: 1.31mm2 (16AWG) Fuse: 15A
