OptiMate 6 12V/24V

MSRP $131.95

GOLD series: 8-step 12V 6A / 24V 3A sealed battery saving charger & maintainer

OptiMate 6 12/24V is the versatile battery charger for 12V or 24V lead-acid batteries – best for deep cycle batteries!
The 12V 24V battery charger is recommended for maritime, light aircrafts, RV and electric wheelchair



Select the right charge voltage for your 12V and 24V lead-acid battery – Selection remains in memory even if AC power is lost.
With the 6V 12V battery charger you can select the right charge voltage for your 12V and 24V lead-acid battery.



Fully automatic multi-step program brings the battery safely to full charge – Connect to the battery and OptiMate 6 12V-24V does the rest, no supervision required!
The fully automatic multi-step program to full charge the battery safely.





MORE FEATURES:

For lead-acid (Pb) 12V automotive starter (SLI) including STD (with filler caps), AGM, GEL (sealed VRLA) & Ca-Ca and deep cycle battery types.

Automatically adjusts current to match battery size and condition.

Temperature compensation: Voltage is adjusted higher when colder, or lower when hotter.
Safe to leave connected. Full electronic protection.
Maintains battery at full charge and good health.
Saves your ‘dead’ battery from as low as 0.5V.
Tests battery state of health.
Voltage safety check: will not charge if battery voltage does not match selection. Requires user confirmation.
50% less energy, 50% lower cost.
√ Power Factor Correction
√ Synchronous Rectification
Weatherproof. Rated for use down to -40°C / -40°F.

Video



FAQ

Disconnect the charger from the battery
Place and hold finger on Select-TOUCH sensor. The selected voltage LED brightens to confirm touch.
After 3 seconds the voltage selection changes, then SAVE (#3), CHARGE (#4) and TEST (#6,7, 8) LEDs flash twice to confirm selection is in memory.
The selection remains even if AC power is lost.

Disconnect the charger from the battery first, before making the selection with the touch button.

OptiMate 6 is the best charger for starter and deep cycle batteries.

STD, AGM and GEL 12V lead-acid batteries used for engine start & deep cycle applications. (Link: Learn here about batteries, this will be at www.optimate1.com/batteries).
For 12V batteries : Overnight charge (12h) : max battery capacity 50Ah. Max recommended size (24h) : 100 Ah. For 24V batteries : Overnight charge (12h) : max battery capacity 30Ah. Max recommended size (24h) : 60 Ah

The time required for the OptiMate 6 to complete the charge of a 12v-50Ah battery should take no more than about 10 hours. Deep-discharged batteries may take significantly longer.
The time required for the OptiMate 6 to complete the charge of a 24v-25Ah battery should take no more than about 10 hours. Deep-discharged batteries may take significantly longer.

More

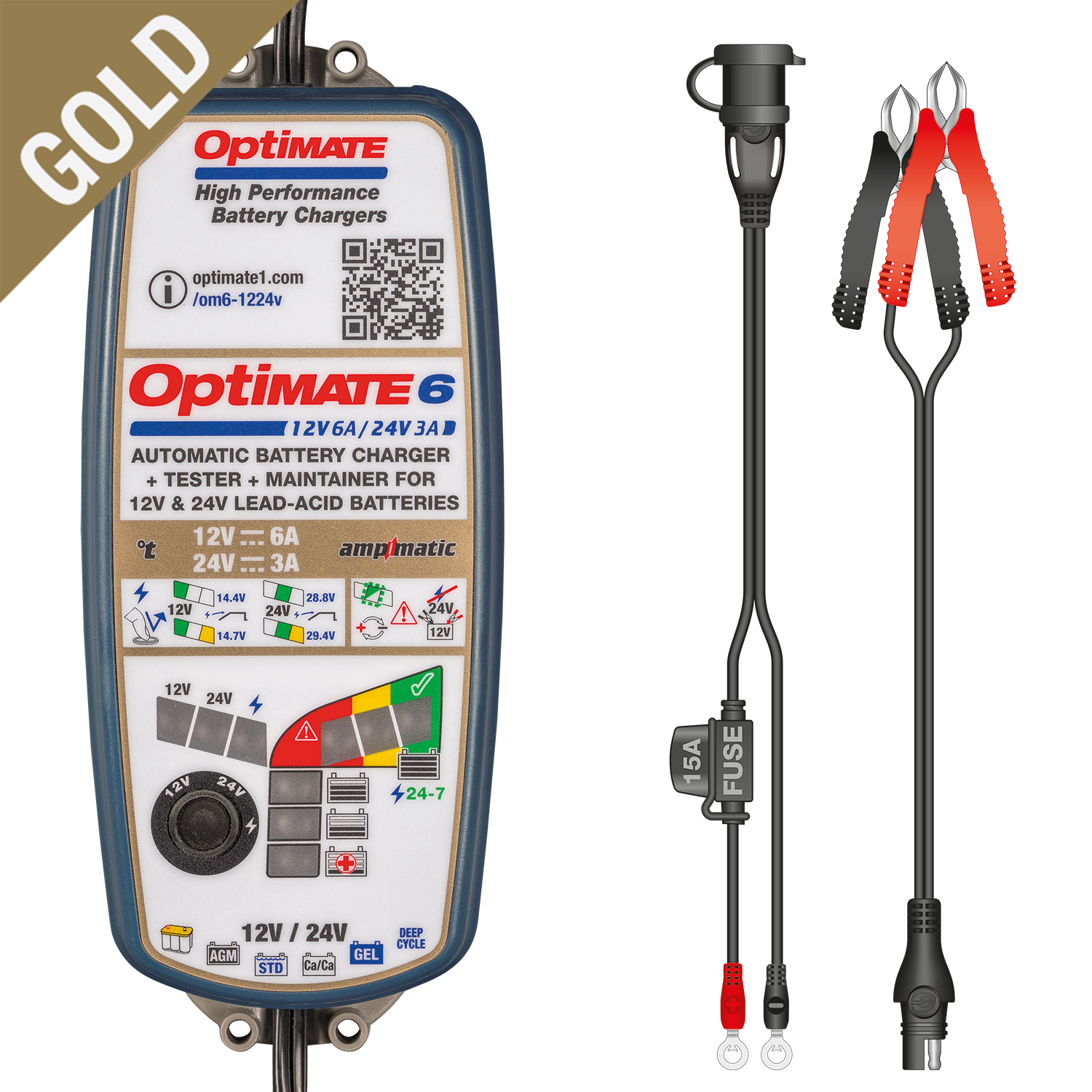

Includes 2 battery connection cable accessories

  1. Battery lead (replacement SKU O-11) – fits to battery in your vehicle for convenient ‘quick-connect’ charging access.

Adjustable: Fits two bolt sizes



  2. Battery clips (replacement SKU O-04) –

Fits securely to square, round or flat battery posts.



In store packaging

SKU: TM-38x Category:

Models

Available models are listed below.

All OptiMate battery chargers listed below accept global input of 100-240Vac 50-60Hz, only the power plug TYPE is different to comply with national / regional electrical safety laws.

TYPE A – Canada / United States of America

TYPE C – Europe

TYPE G – United Kingdom

Find my plug?

BUY

MSRP = Manufacturer Recommended Retail Pricing is displayed above. (Currency selector > top right).
Price in EURO and GBP include VAT of 20%. VAT in your region may differ. Price in USD and CAD do not include sales tax.

TecMate do not sell product directly to the consumer. Find your nearest retailer by selecting the appropriate model below.



OptiMATE 6 12V/24
SKU TM-381

OptiMATE 6 12V/24 SKU TM-381

OptiMATE 6 12V/24
SKU TM-380

OptiMATE 6 12V/24
SKU TM-382

Specifications

IDEAL FOR: AGM, GEL, STD, DEEP CYCLE & Ca-Ca 12V (batteries from 6 – 240Ah) | 24V (batteries from 3 – 120Ah).

CHARGING AMPS: 6A (Ampmatic current) @ 12V / 3A (Ampmatic current) @ 24V

CHARGING VOLTS: 12V range: 0.5V – 14.4V / 14.7V; 24V range: 18V (0.5V*) – 28.8V / 29.4V

*Voltage safety check. Will not charge if battery voltage does not match selected voltage. User must confirm it is a low volt 24V battery > press selection button for 3 seconds to confirm > then lowest charge voltage for 24V is reduced to 0.5V.

OPERATION:  Selectable, 4 charge programs.

12V : 1) 14.4V for standard batteries. 2) 14.7V for premium AGM / deep cycle.

24V : 3) 28.8V for standard batteries. 4) 29.4V for premium AGM / deep cycle.

Steps: 8

TM194-EU-EN

FEATURES: Designed for sensitive electronics: The SAVE program has been designed for SAFE fully automatic low volt start (from 0.5 Volts) and PULSE recovery of deep discharged batteries connected to very sensitive electronics e.g. light aircraft, industrial equipment.

USE: Indoor / Outdoor  (lowest temperature: -40°F / -40°C).

INPUT: Global (100-240V 50-60Hz), high efficiency (CEC listed).

STYLE: Weatherproof case with wall mounts, with 6ft / 180cm AC supply lead and 6ft / 180cm charge lead ending in SAE connector.

SAVE : Low Volt Start of 0.5V + 1-step desulphation recovery.

SAFE: No risk of overcharging. Totally safe for vehicle electronics. Sparks suppressed. Safe for long-term battery maintenance. Automatic shut-down if short-circuited or battery disconnected.

INCLUDED: Weatherproof battery lead & battery clip set.

WARRANTY: 3-year limited replacement warranty.

Documents
