OptiMate G10 12V/16V
MSRP $229.95
PRO series: 12V 10A / 16V 8A battery charger for racing / performance AGM lead-acid and LFP Lithium batteries

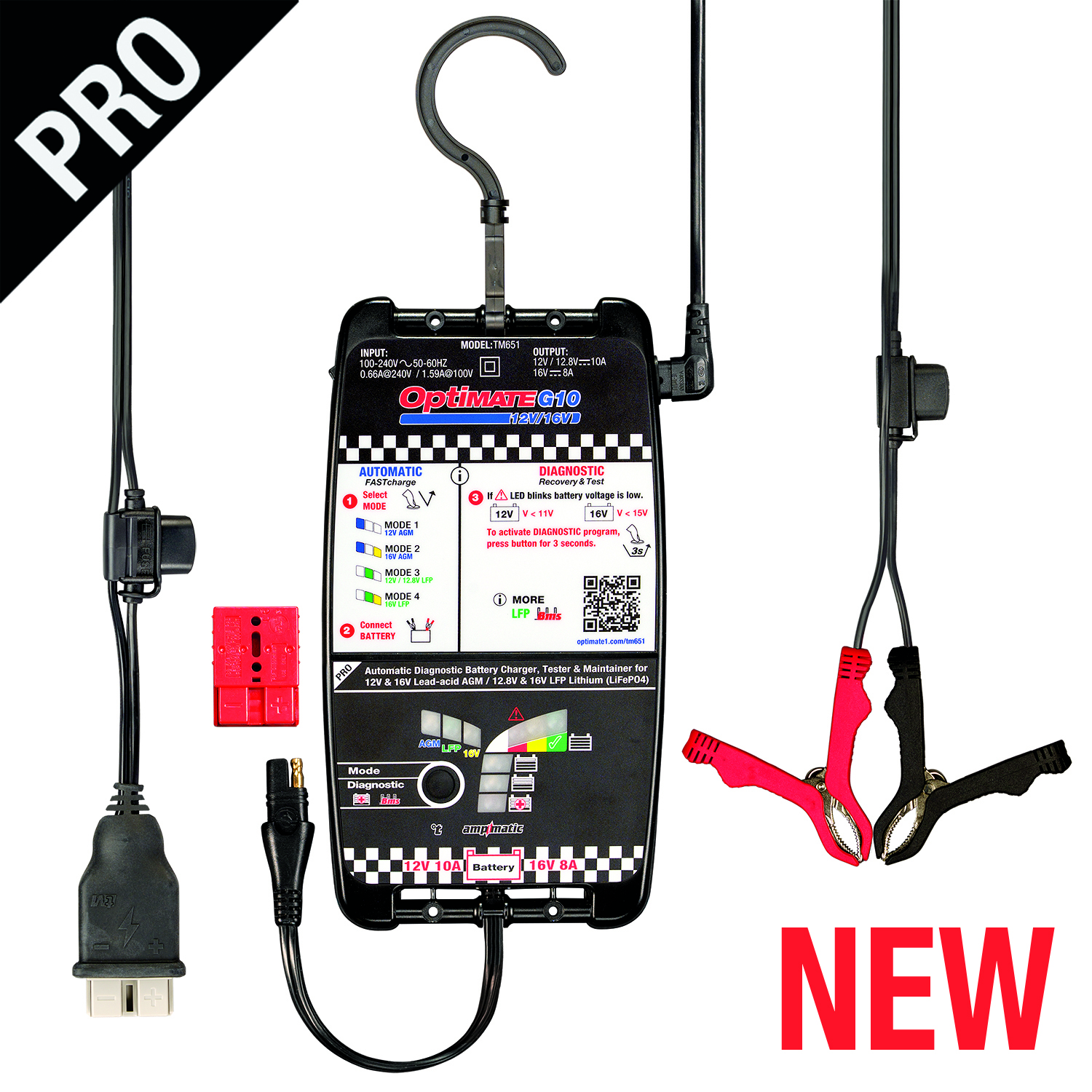

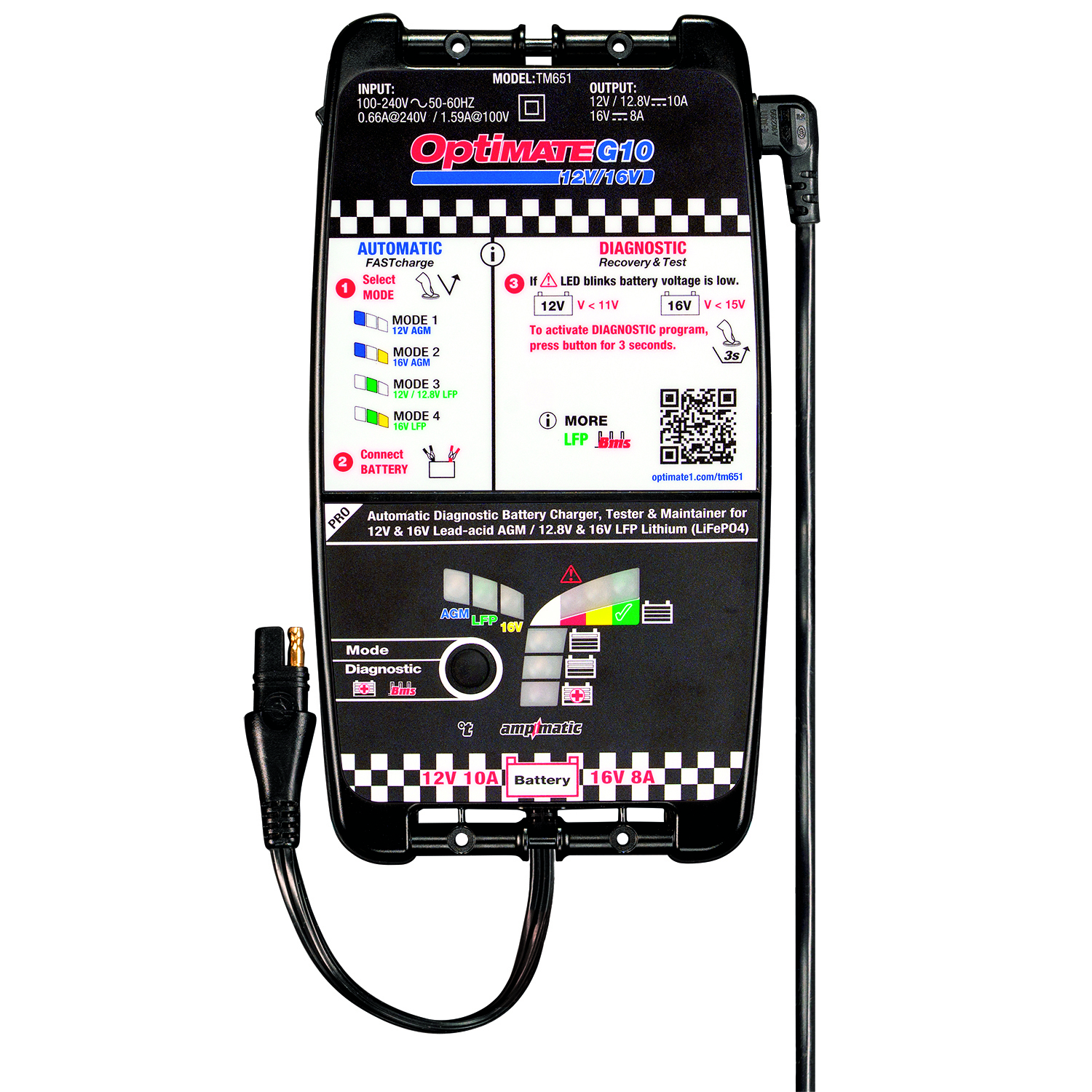

OptiMate G10 12V/16V, the most advanced ‘racing’ battery charger for 12V & 16V AGM lead-acid and 12.8V/13.2V & 16V LFP Lithium-ion batteries.

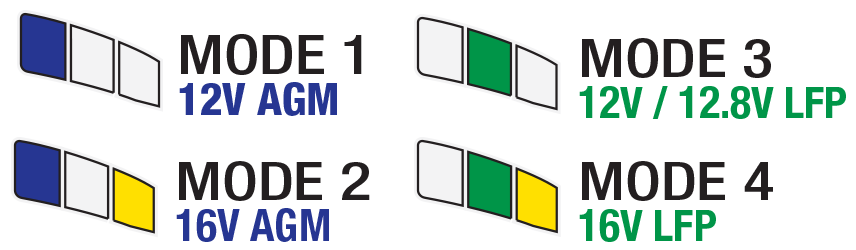

4 mode selections: 12V AGM, 16V AGM, 12.8V/13.2V (4s) LFP & 16V (5s) LFP.
FASTcharge program automatically charges partially discharged battery before race at maximum power to get the battery ready quickly. A flashing green test light confirms the battery is more than 90% charged and ready to use.
FASTcharge program provides battery support whilst engine is running.
DIAGNOSTIC program that can recover a completely discharged battery from as low as 0.5 Volts, can be manually activated if battery is too low to receive FASTcharge.
DIAGNOSTIC program can be pre-selected for controlled Ampmatic charging of smaller batteries (below 25Ah for AGM and 9Ah for LFP) – charge current is automatically regulated to match battery size.
Pushbutton activated BMS reset for 12.8V / 13.2V / 16V LiFePO4 batteries with resettable low voltage / deep discharge protection.
AGM (Pb) charge voltage is set for premium AGM lead-acid batteries that require a charge voltage of 2.45V per cell; 14.7V for 12V AGM and 19.6V for a 16V AGM battery.
LFP charge voltage is set for LiFEPO4 batteries that require a charge voltage of 3.6V per cell; 14.4V for a 12.8V/13.2V (4s) and 18V for a 16V (5s) battery.

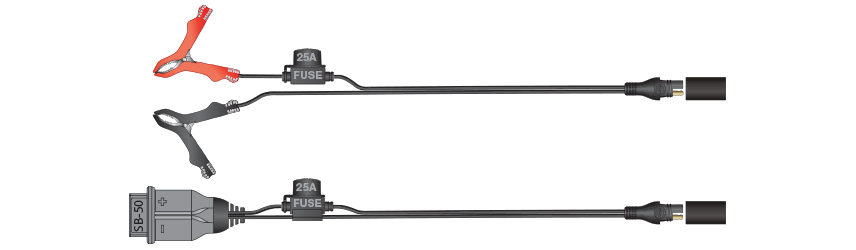

Connect to battery with SB-50 adapter (grey & red) or battery clips, each protected with a 25A fuse.
MORE FEATURES:
|
|
|
|
FAQ
Models
One model with different AC cord options.
With AC cord Type A for Canada / USA. (cord P/N: TA-31)
With AC cord Type C for Europe. (cord P/N: TA-30)
With AC cord Type G for UK. (cord P/N: TA-32)
With AC cord Type I for Australia/New Zealand. (cord P/N: TA-38)
Find my plug?
More

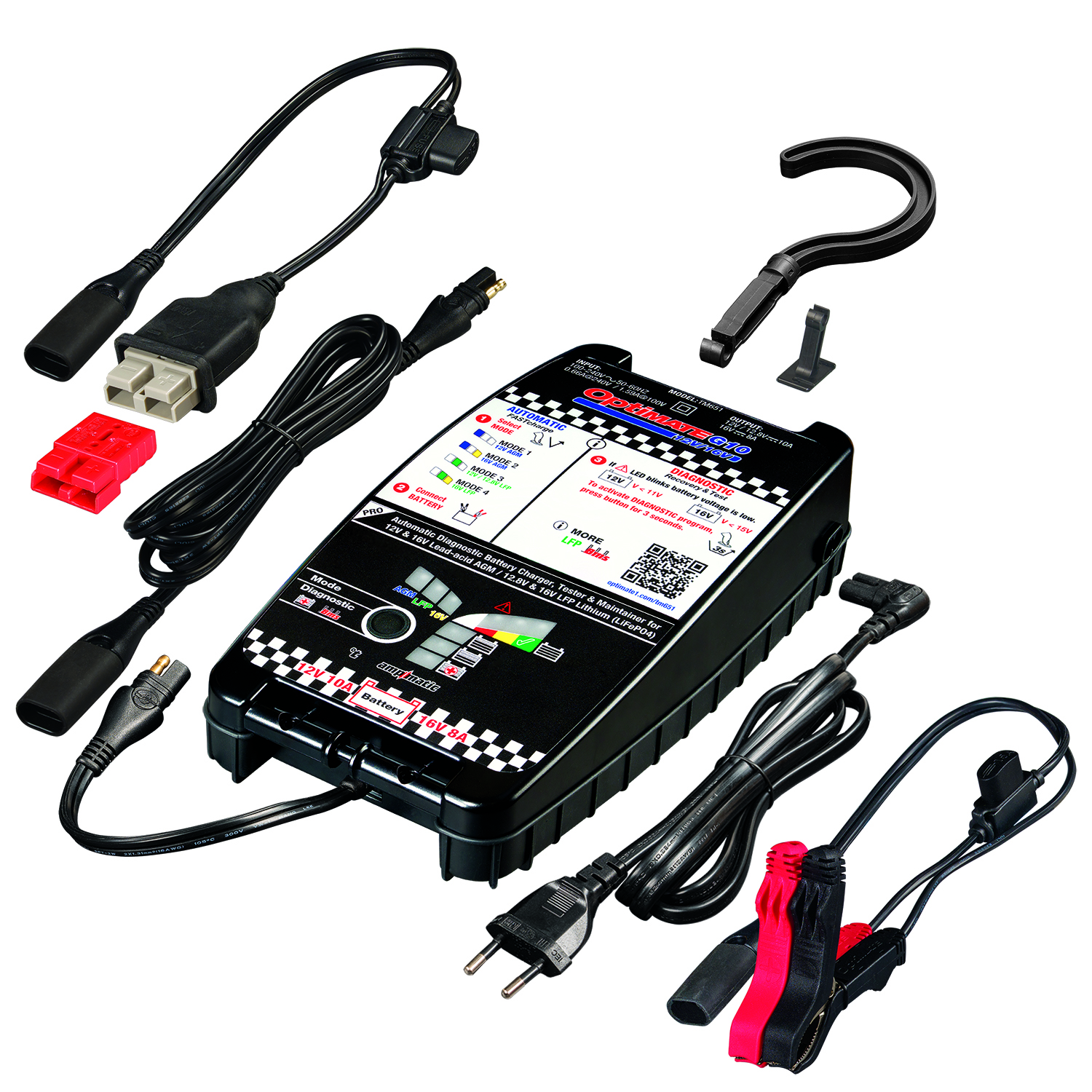

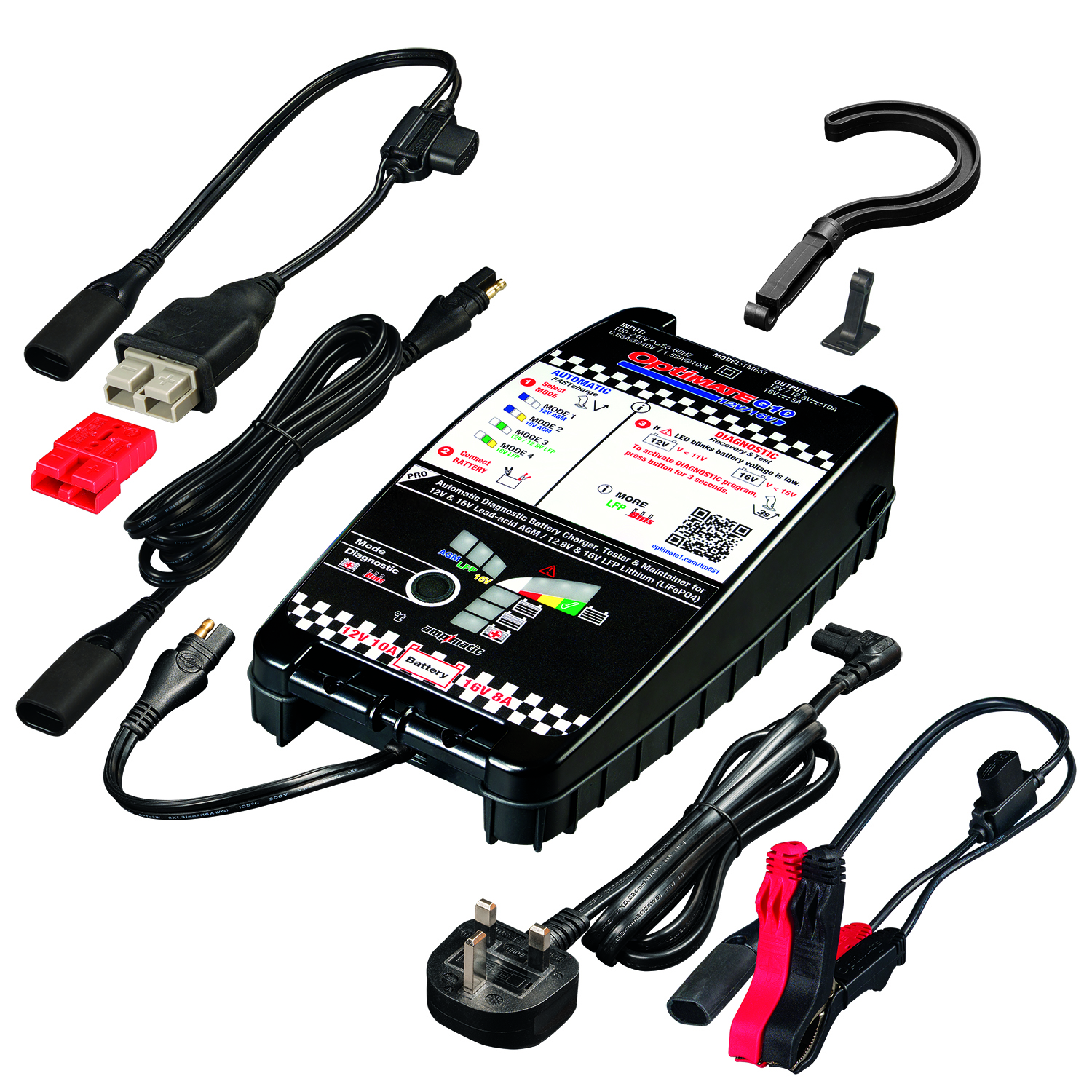

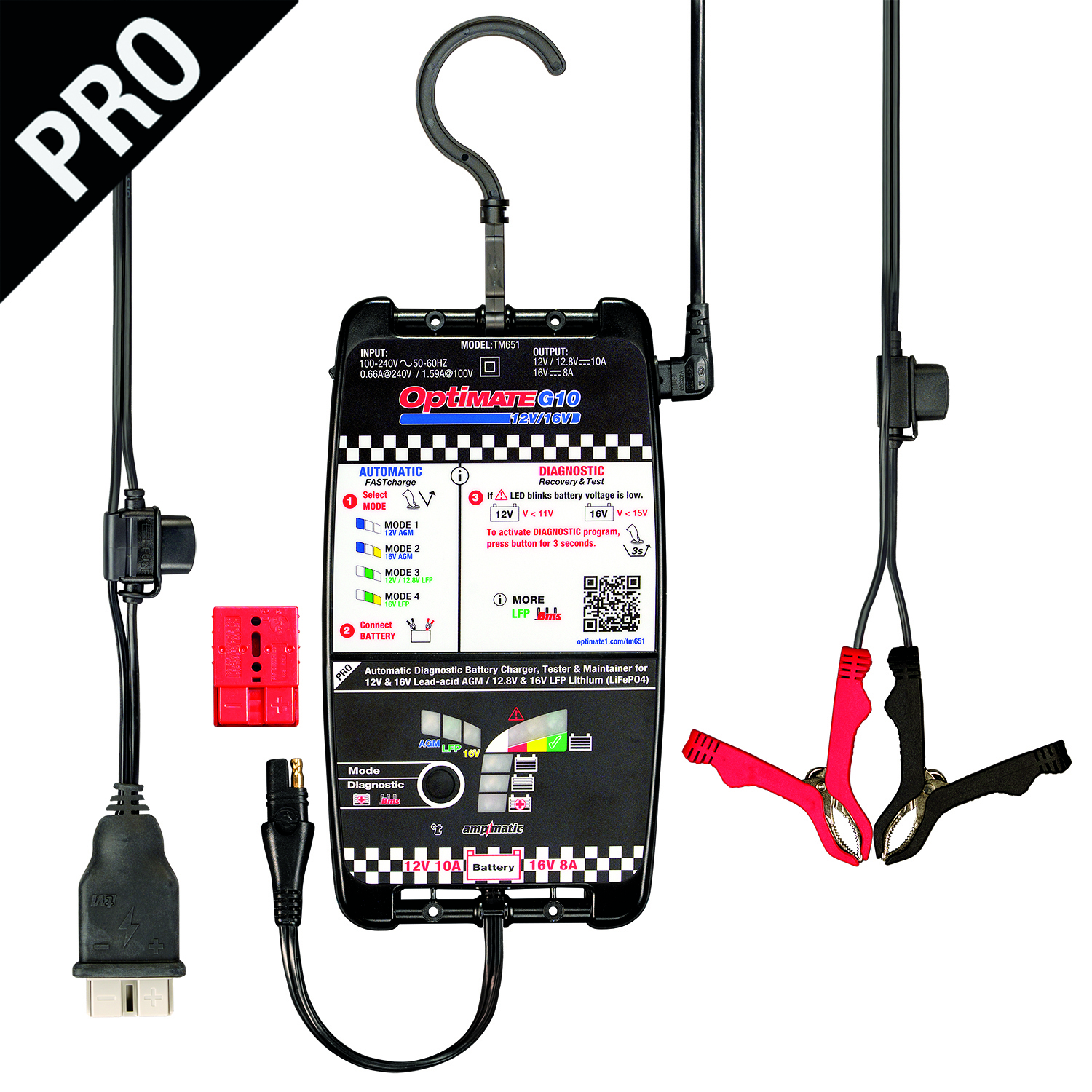

Includes 5 accessories.
1. AC power cable that matches your region –
2. Output cable extender (replacement SKU O-43) –

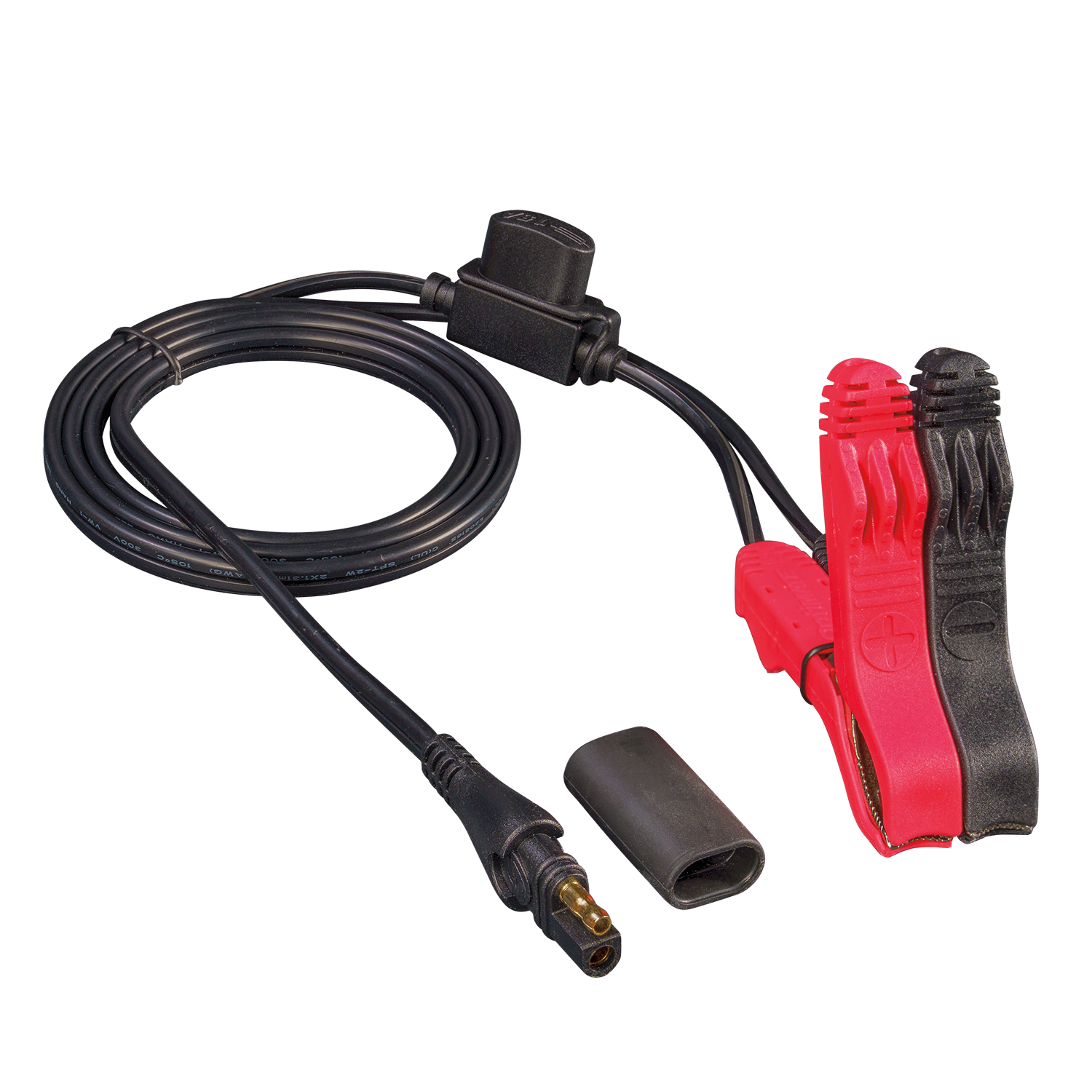

3. Battery Clips with fuse (replacement SKU O-34) –

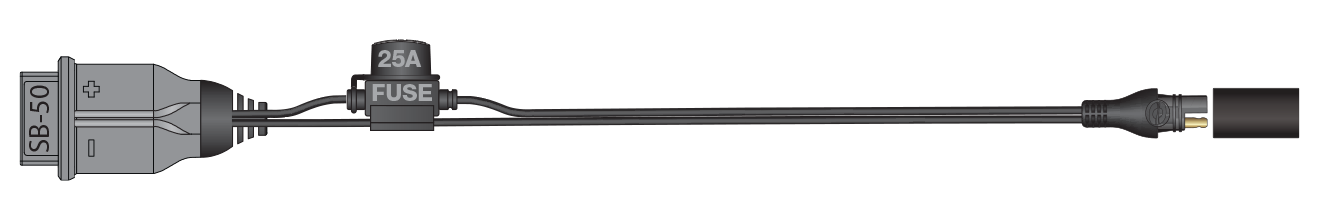

4. SB-50 cable (replacement SKU O-75) –

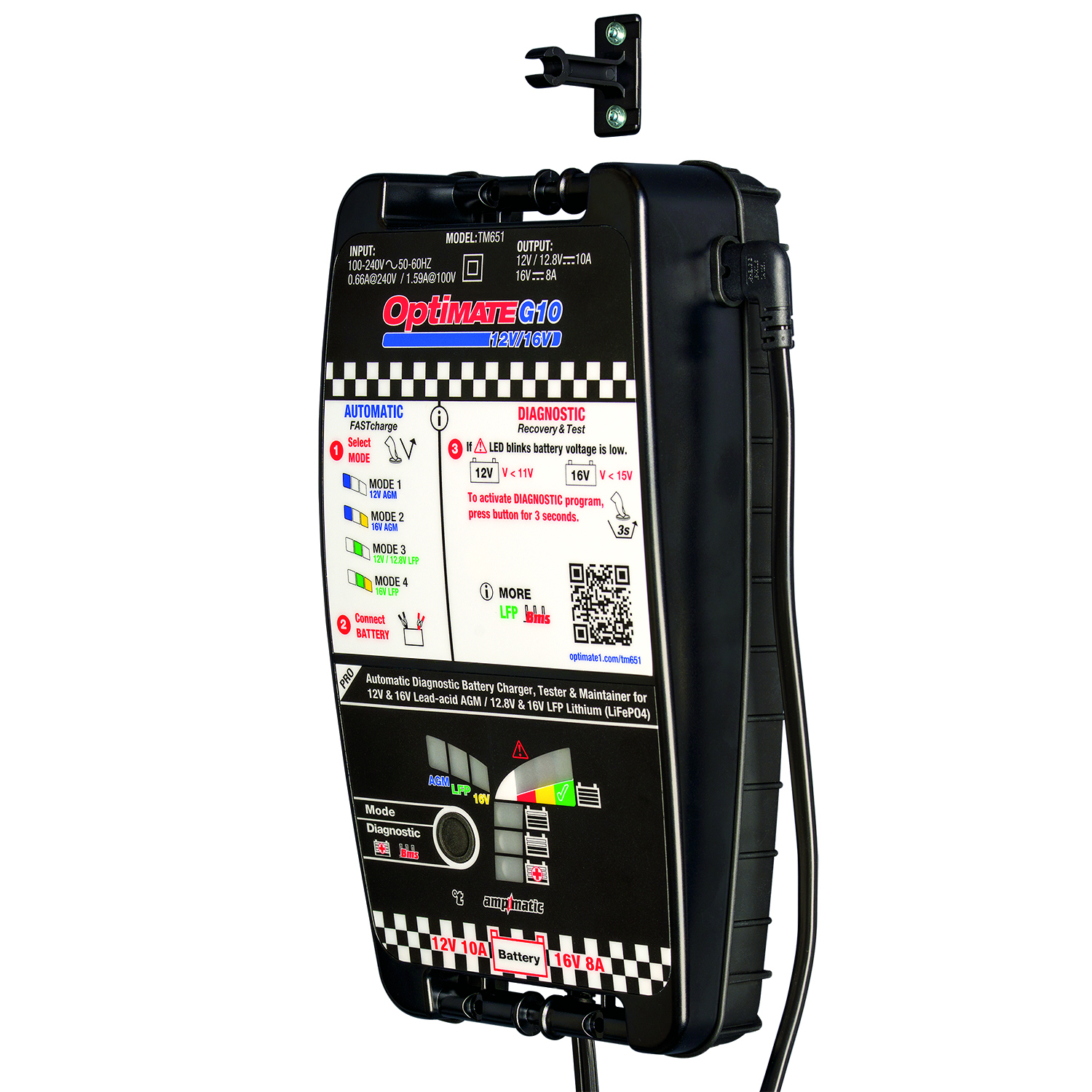

5. Wall storage receiver –
6. Handlebar hanging hook –
BUY
MSRP = Manufacturer Recommended Retail Pricing is displayed above. (Currency selector > top right).
Price in EURO and GBP include VAT of 20%. VAT in your region may differ. Price in USD and CAD do not include sales tax.
TecMate do not sell product directly to the consumer. Find your nearest retailer by selecting the appropriate model below.
TM-651 with TA-31 AC cord
TM651 with TA-30 AC cord
TM651 with TA-32 AC cord
TM651 with TA-38 AC cord
Specifications
IDEAL FOR:
12V AGM lead-acid STD & AGM from 3-240Ah and 12.8V/13.2V Lithium LFP (LiFePO4) from 2-120Ah.
16V AGM lead-acid STD & AGM from 3-240Ah and 16V Lithium LFP (LiFePO4) from 2-120Ah.
CHARGING AMPS: 0.4A to 10A variable (Ampmatic)
CHARGING VOLTS: 12V AGM lead-acid: 0.5V to 14.4V. 12.8V/13.2V Lithium LFP (LiFePO4): 0.5V to 14.4V. 16V AGM lead-acid: 0.5V to 19.2V. 16V Lithium LFP (LiFePO4): 0.5V to 19.2V.
OPERATION: Selectable
Steps: 8
USE: Indoor rating IP40.
INPUT: Global (100-240V 50-60Hz), high efficiency.
STYLE: Case with rubber bumbers, with wall-mount or hanger bars. AC Class 2 input socket, with ON/OFF switch, 15cm / 6" output cord.
INCLUDED CABLES: Class II AC cord suitable for region, O-43 charge lead extender 180cm/72", O-34 fused battery clips and O-75 SB-50 fused cable.

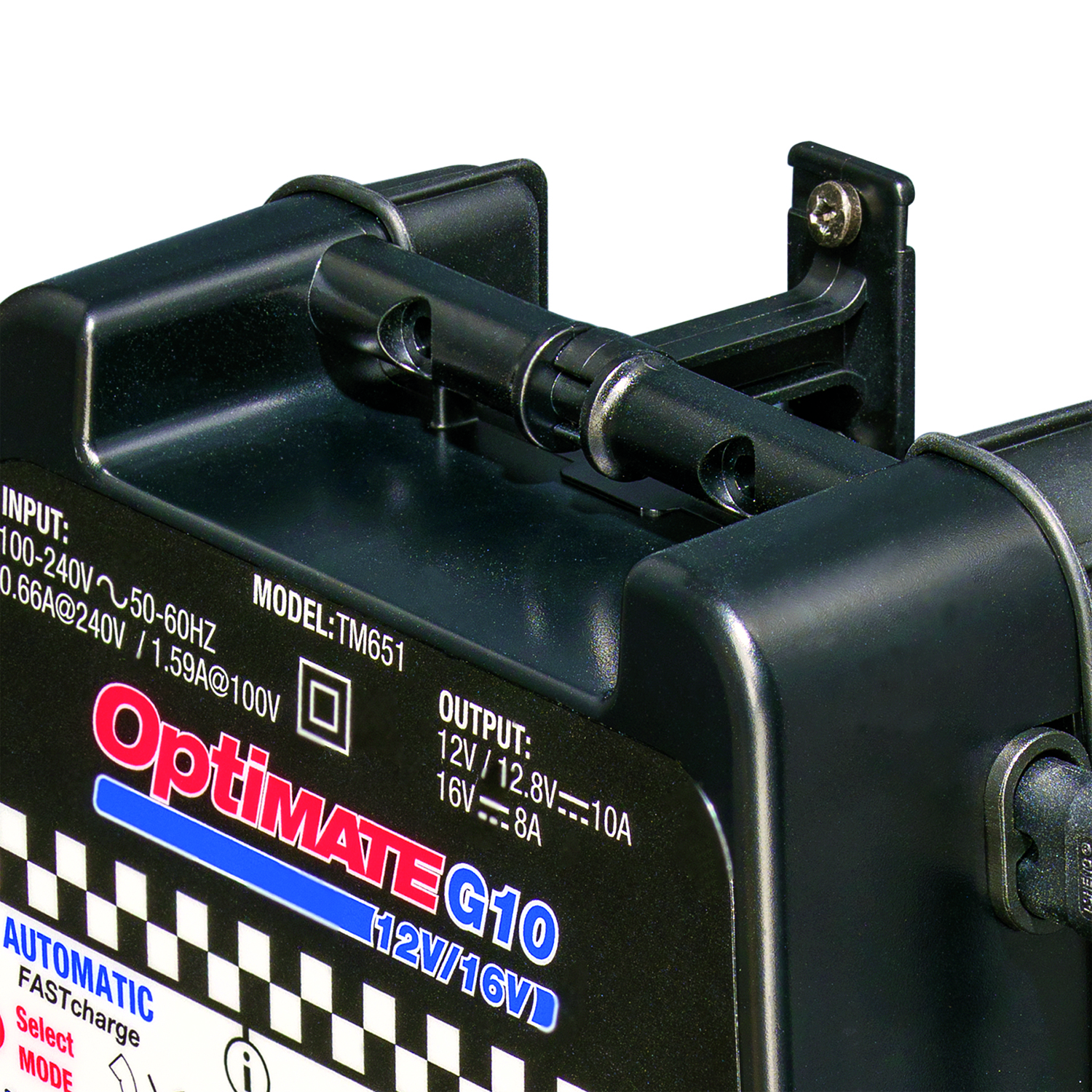

INCLUDED HARDWARE: Wall storage receiver and bar hanging hook.
WARRANTY: 2-year limited repair / replacement warranty.
